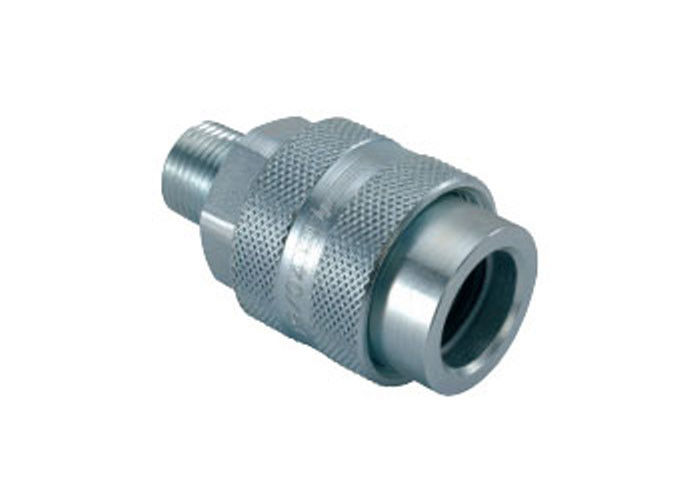

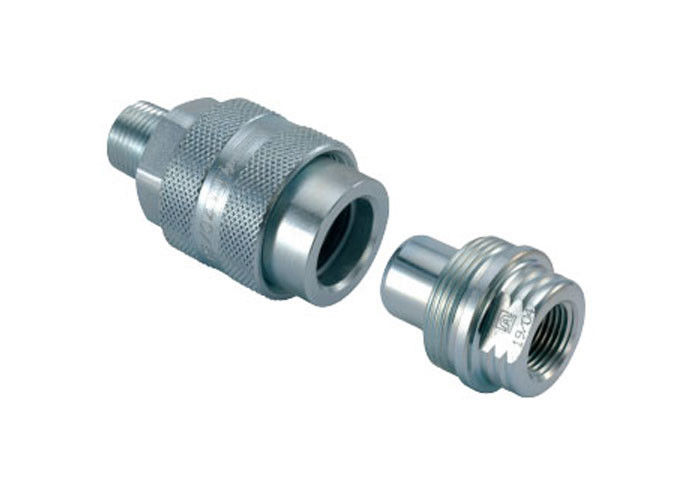

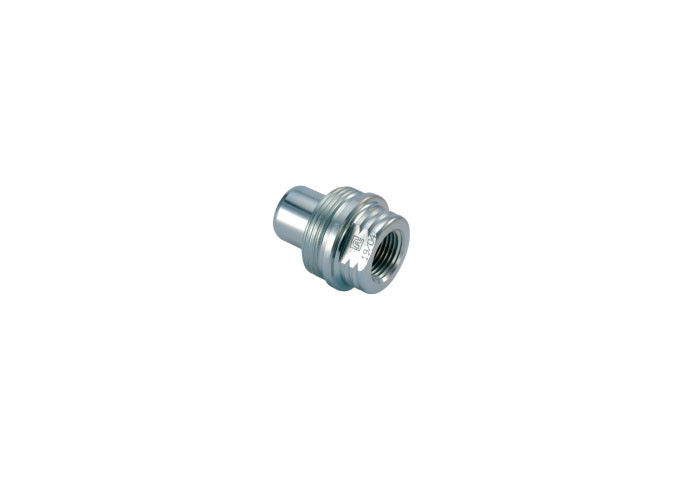

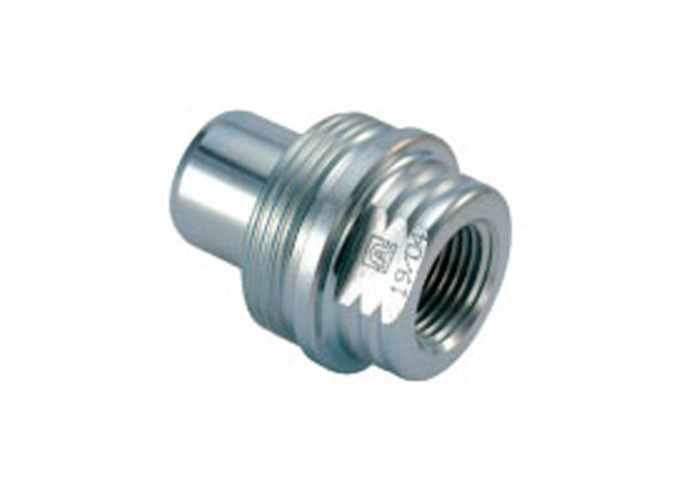

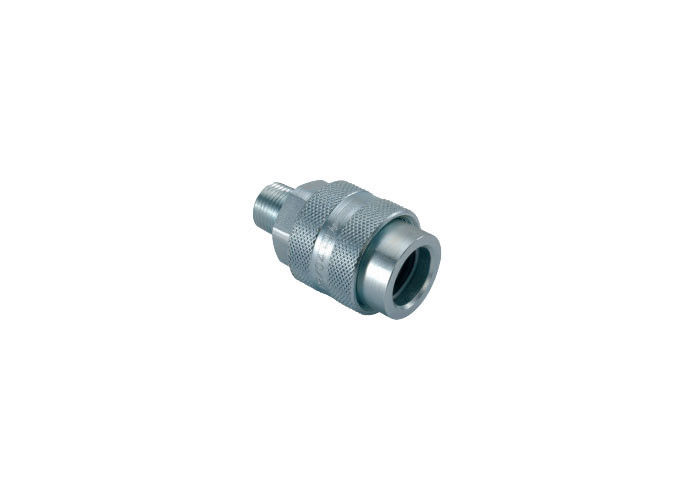

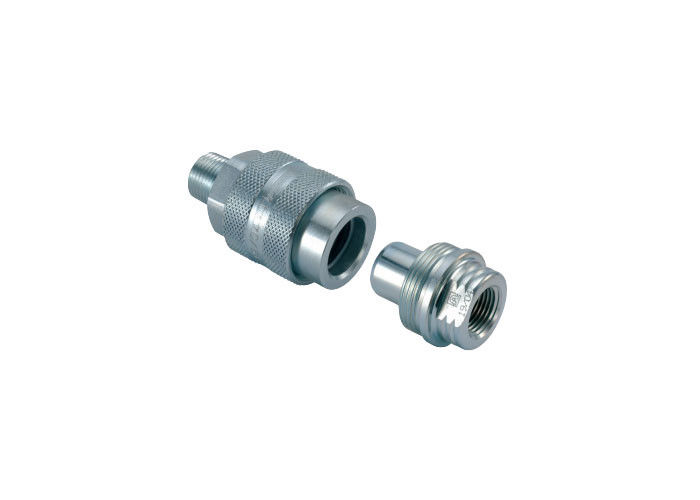

Hydraulic jacks, clamping systems, lifting and emergency release equipment applications Threaded Quick Connect
As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Applications
Hydraulic jacks, clamping systems, lifting and emergency release equipment,
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-5MN-C | 1/4 NPT | 60 | 28,5 | 22 |
| 3/8" | CB-S3S-5MN-C | 3/8 NPT | 70 | 35 | 27 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2S-5MN-C | 1/4 NPT | 35 | 15,9 | 19 |
| 3/8" | CB-P3S-5MN-C | 3/8 NPT | 42 | 19 | 23 |
