Подробная информация о продукте:
Оплата и доставка Условия:
|
| Имя: | КОПЛЕНИЕ ПОЛОЖИ | Материал: | Медь |
|---|---|---|---|
| Соединение: | Женский/мужчина | Температура: | -15°C~150°C |
| Совместимо: | Серия Parker Moldmate | Рабочее давление: | 1.5 мПа |
| Особенности: | Не клапанные | ||
| Выделить: | 1.5Mpa Brass Quick Release Coupling,Line Modular Brass Coupling,Non Valve 1.5Mpa Brass Quick Coupling |
||
COMPATIBLE WITH PARKER MOLDMATE SERIES SMALL MEDIUM LARGE MOULD BRASS COUPLING

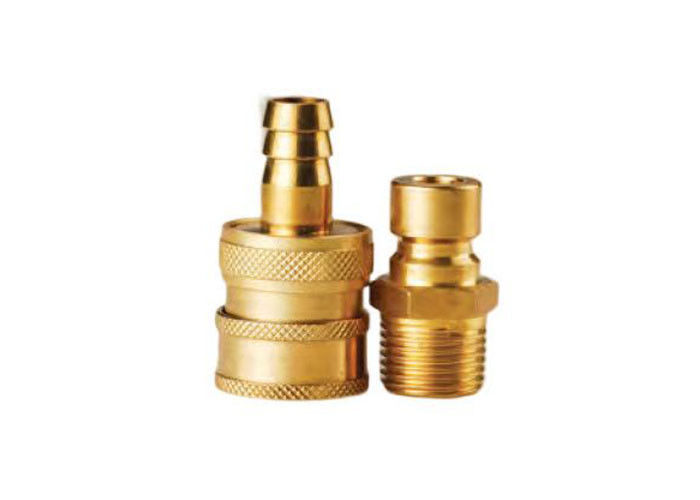

MOULD QUICK COUPLING(SMALL)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine.
→ Advantages: simple structure. High flow. Non-valve.
→ Application: the line of modular, cooling system.
→ Interchangeability: PARKER MOLDMATE series.
→ Working Pressure: 1.5Mpa.
→ Working Temperature: -15℃ to +150℃
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| CB-Q1-01SM | 38 | 18 | 17 | 13 | ZG1/8 | ￠6 |
| PARTNO. | LS | ￠D | ￠CS | A | ￠T | d |
| CB-Q1-03SH | 49 | 18 | 16 | 22 | 11 | ￠7 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| CB-Q1-01PM | 27.5 | 11 | 12 | 9.5 | ZG1/8 | ￠5 |
| CB-Q1-02PM | 30 | 11 | 14 | 13 | ZG1/4 | ￠5 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-Q1-01PM | 75 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 100 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 125 | 11 | 12 | ZG1/8 | ￠5 |
| CB-Q1-01PM | 150 | 11 | 12 | ZG1/8 | ￠5 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-Q1-02PM | 75 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 100 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 125 | 11 | 14 | ZG1/4 | ￠5 |
| CB-Q1-02PM | 150 | 11 | 14 | ZG1/4 | ￠5 |
