Подробная информация о продукте:
Оплата и доставка Условия:
|
| Материал: | Углеродистая сталь | Стандартный: | ISO5676 |
|---|---|---|---|
| Номинальное давление: | 5000PSI | Номинальный поток: | 3GPM |
| Температура: | -20℃~80℃ | Размер: | 1/4-1» |
| Материал уплотнения: | NBR | Совместимо с: | PARKER 4000 серий, более БЫСТРАЯ серия NS/NV |
| Выделить: | ISO5676 Hydraulic Quick Couplings,Carbon Steel Hydraulic Quick Couplings,NBR Seal ISO 5675 Coupler |
||
1. The Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment,hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves are available to prevent uncoupled leakage .Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Hard chrome alloy balls are used for valving.It be loaded on the valve seat by the springs.
4. Critical parts are hardened for durability.
5 The series conforms to the standard of ISO5675.
6 Compatible with PARKER 4000 Series, FASTER NS/NV Series.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃ to +80℃ | ||||
| Standard seal material | NBR | ||||

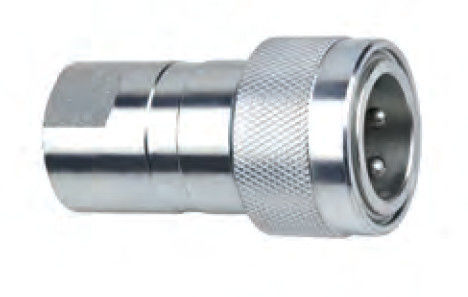

| ISO | PARTNO. | LS | ￠ D | HEX1 | A | T |
| 6.3 | CB-S2S-PK | 55.5 | 27.6 | 22.2 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-PK | 60.5 | 34 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-PK | 68 | 38 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-PK | 83 | 47.5 | 35 | 18 | G3/4 NPT3/4 |
| 20 | CB-S6S-PK(E) | 82.5 | 48.2 | 34 | 19 | G3/4 NPT3/4 |
| 25 | CB-S8S-PK | 97.5 | 56.2 | 41 | 21 | G1 NPT1 |

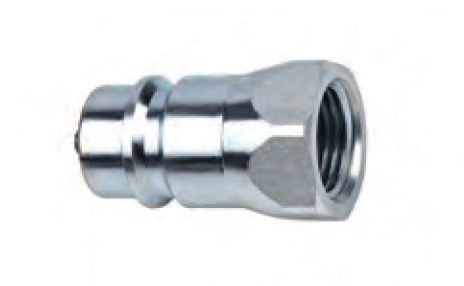

| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | CB-P2S-PK | 36 | 14.2 | 18.5 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-P3S-PK | 40 | 19 | 22 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-P4S-PK | 46 | 20.5 | 29 | 27 | 18 | G1/2 NPT1/2 |
| 20 | CB-P6S-PK | 51 | 26.9 | 28.5 | 33.3 | 18 | G3/4 NPT3/4 |
| 20 | CB-P6S-PK(E) | 53.5 | 28 | 32 | 34 | 19 | G3/4 NPT3/4 |
| 25 | CB-P8S-PK | 64 | 31.3 | 34 | 41 | 21 | G1" NPT1" |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
