Place of Origin:
Shanghai, China
Фирменное наименование:
Carterberg
Сертификация:
IATF16949
Model Number:

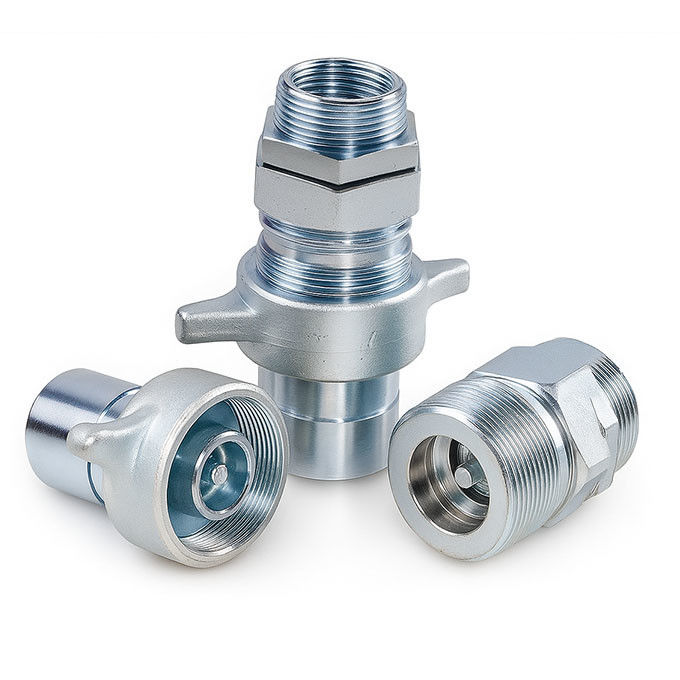

CB-SPS-3FN-BC
| Parameter | Value |
|---|---|
| Model | CB-SPS-3FN-BC |
| Connection Type | Thread-to-Connect (Wing Nut) |
| Valve Type | Dual Shut-Off / Dry-Break |
| Body Material | Zinc-plated carbon steel |
| Seal Material | NBR (standard) |
| Nominal Sizes | 3/4", 1" |
| Rated Pressure | 4000 PSI (3/4"), 3000 PSI (1") |
| Rated Flow | 25 GPM (3/4"), 50 GPM (1") |
| Operating Temperature | -20°C to +120°C |
| Connect Under Residual Pressure | Yes (manual operation) |
Female (Socket)
| PARTNO. | T | ￠D | HEX1 | HEX2 | L | LS | LP |
| CB-S6S-BC | G3/4 | 115.4 | 46 | 33 | 132.5 | 78 | 78 |
| CB-S8S-BC | 1" | 115.4 | 55 | 40 | 145 | 83 | 83 |
| Feature | Benefit |
|---|---|
| Wing nut sleeve on socket half | Connects under pressure without tools |
| Dry-break valve core | Reduces oil spillage and contamination |
| Short overall length | Fits into narrow installation spaces |
| Replaceable seal options | Extended media and temperature compatibility |
